Product Description

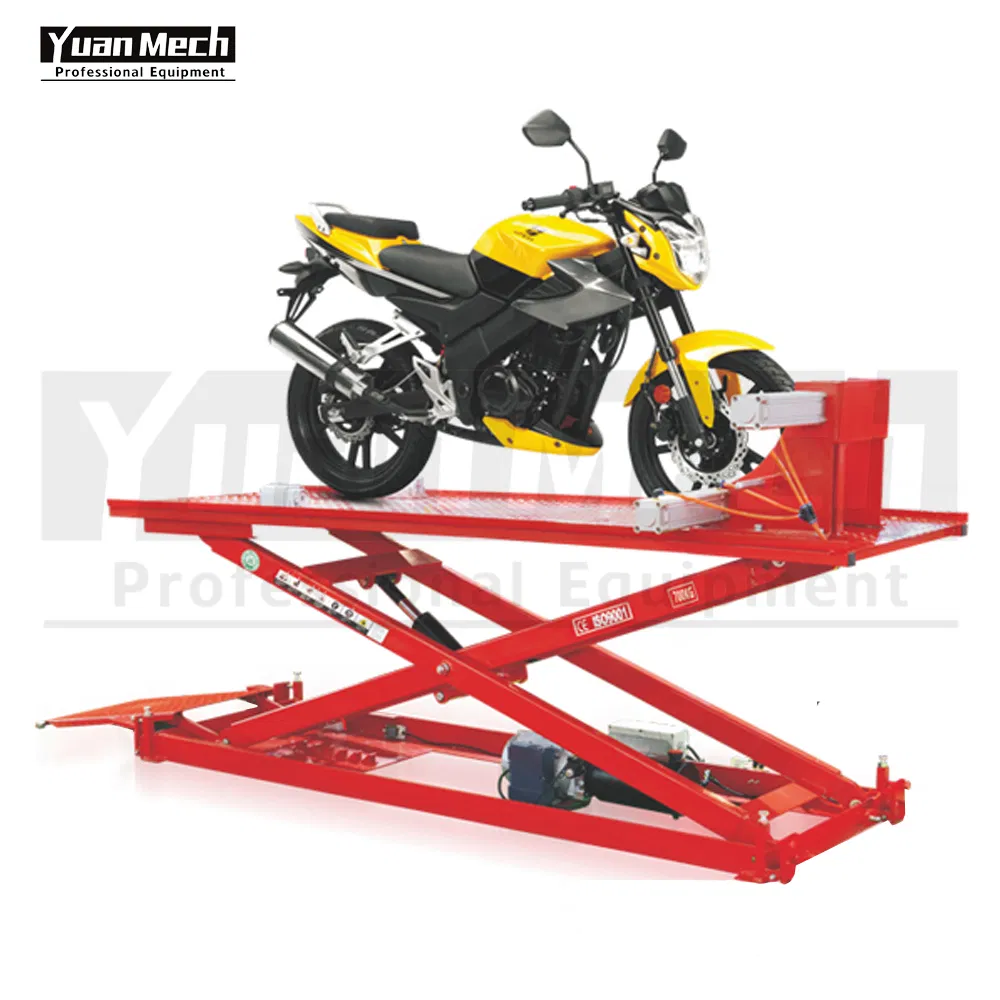

Motorcycle ATV Lift Table with Droptail
This motorcycle lift is one of our most heavy duty electro hydraulic lifts. It boasts an exceptionally large platform to handle virtually any motorcycle or ATV in its weight class.
Motorcycle Lift Table

Basic Specifications

Model NO.:YM-JSMT-A-3005
Type:One Cylinder Hydraulic Lift
Lifting Capacity:800kg
Driving Type:Hydraulic
Certification:CE
Design:Scissor
Power Supply:220V/50Hz-2.2kw
Lifting Time:30-50s
Min Height:200mm
Package Size:248cm * 75cm * 20cm

Product Description & Features

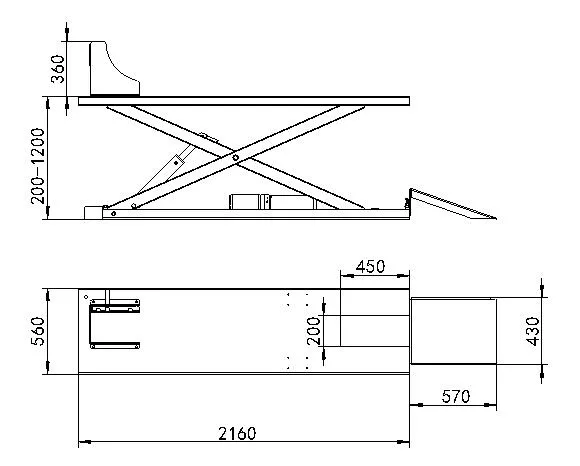

Lifts to 1200mm high, is 2160 mm long, and is 560mm wide. Key features include:

  • Rear ramp section for easy access.

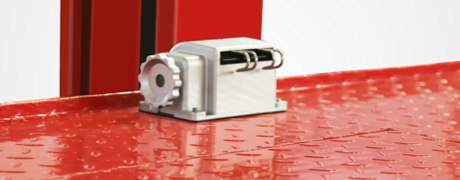

  • Standard wheel vise for secure positioning.
  • Rear drop out panel for accessibility and wheel work.
  • Built-in safety lock system for operator security.
  • Non-skid diamond-plate platform surface.
  • Commercial-grade hydraulic power system.

Detailed Specifications

FeatureParameter
Lifting capacity500kg - 800kg
Lifting height1200mm
Minimum height200mm
Lifting time30-50s
Platform Length2160mm
Platform width560mm
Weight387kg (Gross)

Product Gallery

Lift Detail 1
Lift Detail 2
Lift Detail 3
Full Lift View
Operation View

Our Service

  • Warranty: 14 months. Free parts provided if issues occur during the first 12 months.
  • Delivery: Standard lead time of 10 days after payment.
  • Sample Orders: 1 set sample order is acceptable.
  • Payment Methods: T/T, Western Union, PayPal.
  • Quality Control: CE Certified and life-cycle tested beyond industry standards.

Frequently Asked Questions

Q1: What is the maximum weight capacity of this lift? A: This heavy-duty lift is designed to handle up to 800kg, making it suitable for almost any motorcycle or ATV.
Q2: How high can the platform reach? A: The lift can reach a maximum height of 1200mm, providing a comfortable working height for maintenance.
Q3: Does it require special power installation? A: It operates on a standard 220V/50Hz power supply with a 2.2kw motor.
Q4: Is the platform surface safe for wet tires? A: Yes, the lift features a non-skid diamond-plate platform surface to ensure maximum grip and safety.
Q5: What is the benefit of the rear drop-out panel? A: The removable rear deck allows for easy accessibility to the rear wheel and suspension during repair work.
Q6: How long is the product warranty? A: We offer a 14-month warranty, including free replacement parts for the first 12 months if any mechanical issues arise.
